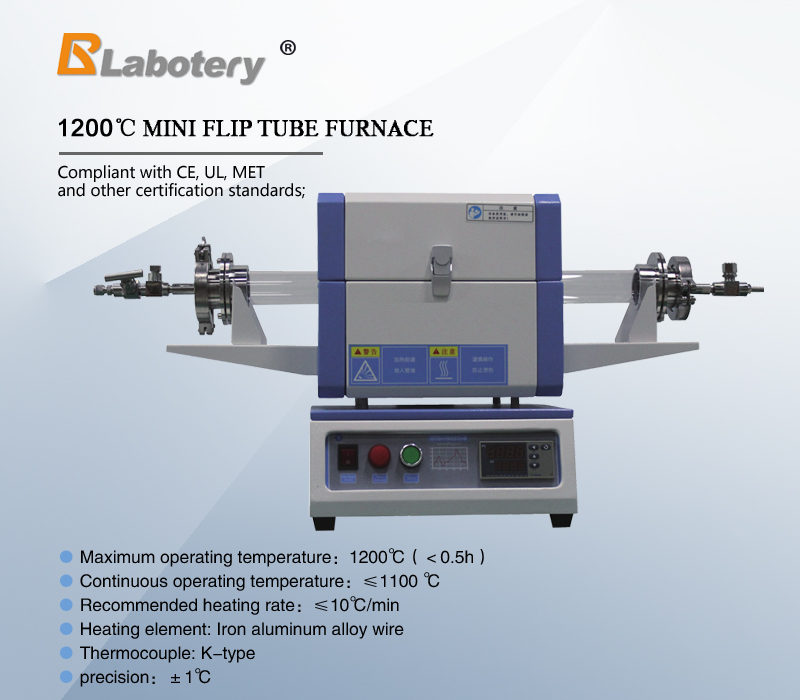

1200 ℃ mini flip tube furnace
1、Brief introduction
An open tube furnace with a maximum temperature of 1200 ℃; Adopting a double-layer shell structure and equipped with an air-cooled system; The furnace is made of high-purity alumina fiber material to minimize energy loss to the greatest extent possible; The surface of the inner furnace is coated with high-temperature alumina imported from the United States, which can improve the reflectivity and heating efficiency of the equipment, while also extending the service life of the instrument. Each temperature zone is controlled by an independent temperature control system.
2、 Technical data
● Maximum operating temperature: 1200 ℃ (＜ 0.5 h)
● Continuous operating temperature: ≤ 1100 ℃
● Recommended heating rate: ≤ 10 ℃/min
● Heating element: Iron chromium aluminum alloy wire
● Thermocouple: K-type
● Temperature control accuracy: ± 1 ℃
● Temperature control method: including a YD858 temperature controller; PID control and self-tuning regulation, intelligent 50 segment programmable control, with super temperature and couple breaking alarm function.
Certification standards and core components: The core components of the entire machine comply with CE, UL, MET and other certification standards; The core components include ABB electrical components, UL certified wires and cables, Omega, Yudian, Continental Instruments, etc
| model | OYS-1200C | OYS-1200C-Ⅱ | OYS-1200C-Ⅲ |
| maximum temperature | 1200℃(<0.5h) | ||
| Heating zone length | 400mm | Dual temperature zone 200mm/+200mm | Three temperature zones 300mm/+300mm/+300mm |
| Quartz tube size | φ25×1000mm/50×1000mm/80×1000mm/100×1000mm | ||
| rated power | 3.1KW | 7.1KW | |
| rated voltage | 220V | ||
| External dimensions | 1030mm×460mm×550mm | ||
| weight | 56KG | ||
