optional function DZF-6032/6050
purpose
The vacuum drying oven is designed specifically for drying heat sensitive, easily decomposable, and oxidizable substances. It can be filled with inert gas inside, especially for items with complex components that can be quickly dried.
Product Features
Horizontal structure design and rectangular workspace maximize the effective usable area.

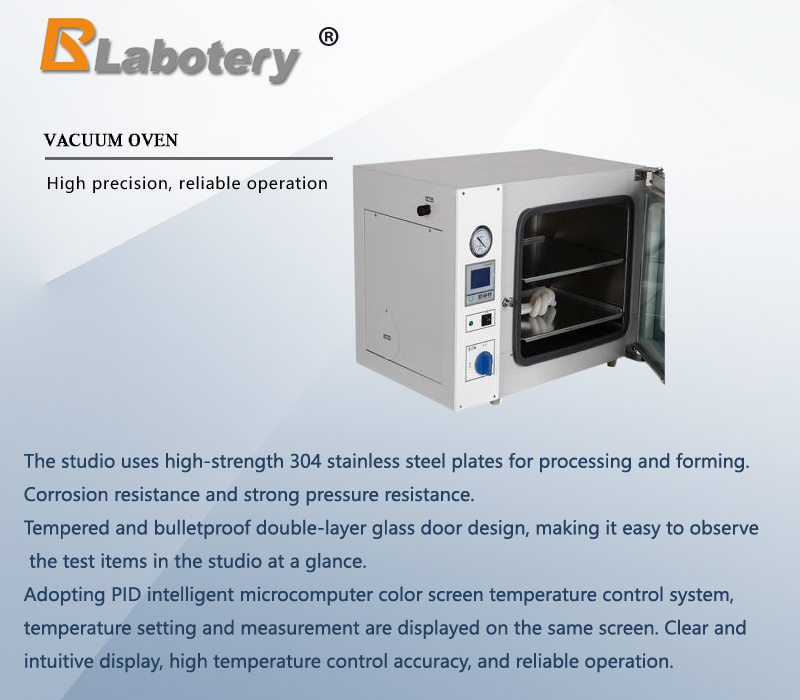

The studio uses high-strength 304 stainless steel plates for processing and forming. Corrosion resistance and strong pressure resistance.
Tempered and bulletproof double-layer glass door design, making it easy to observe the test items in the studio at a glance.
The adjustable tightness design of the box door closure, combined with the integral silicone sealing strip, ensures high vacuum inside the box.
Especially suitable for drying easily decomposable, thermosensitive, and oxidizable substances.
Adopting PID intelligent microcomputer color screen temperature control system, temperature setting and measurement are displayed on the same screen. Clear and intuitive display, high temperature control accuracy, and reliable operation.
It has temperature correction function, timing function, parameter memory function, and is easy to use.
It has PID self-tuning function.
It has an over temperature alarm function.
optional function
Micro printer: prints real-time temperature change records.
RS485 interface: connects to computer remote control communication software, multi-level segmented program temperature control: temperature rise program can be set arbitrarily according to needs.
SMS monitoring and alarm system can be installed. When the user is not on site and the equipment malfunctions, the system promptly collects the fault signal and sends it to the designated recipient's mobile phone via SMS, ensuring timely troubleshooting, resuming experiments, and avoiding accidental losses. (Optional)
Vacuum pump 2L or 4L

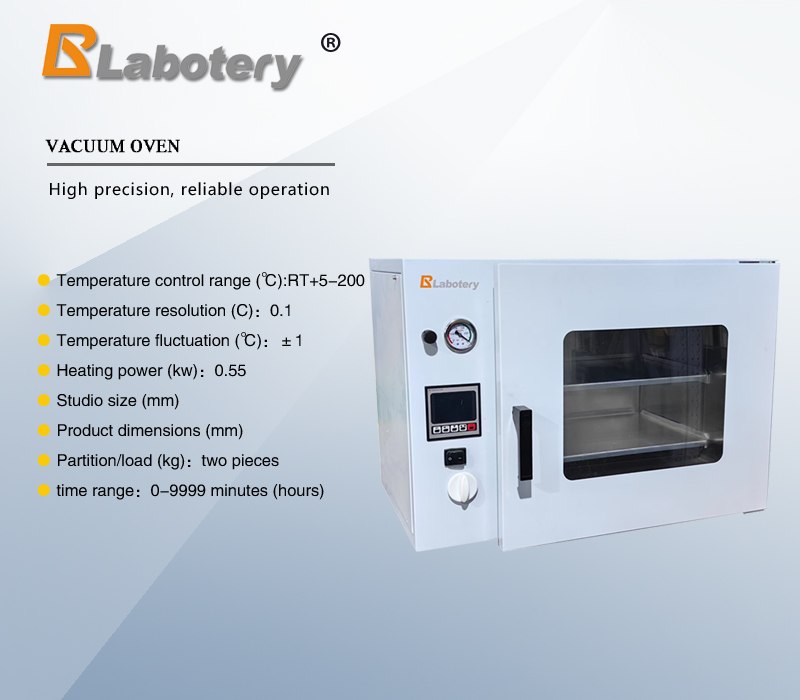

Name | DZF-6032 | DZF-6050 |
supply voltage | 200V 50HZ | |
Temperature control range (℃) | RT+10-200 | RT+10-250 |
Temperature resolution (C) | 0.1 | |
Temperature fluctuation (℃) | ±1 | |
Heating power (kw) | 0.55 | 1.4 |
Studio size (mm) | 320×318×300 | 415×370×345 |
Product dimensions (mm) | 605×480×480 | 710×540×535 |
Product outer packaging size (mm) | 770×710×1100 | 770×760×1320 |
Partition/load (kg) | two pieces | |
time range | 0-9999 minutes (hours) | |
Note:
1. The performance parameter test under no-load conditions is: ambient temperature of 20 ℃, ambient humidity of 50% RH.
2. The vacuum pump is an optional component.
