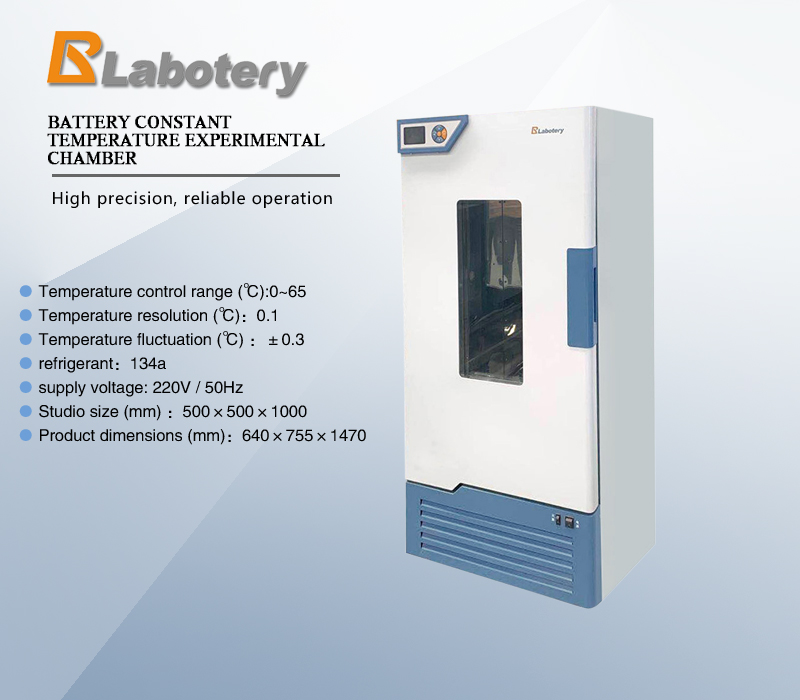

Battery constant temp chamber
SPL-80HT/150HT/250HT/350HT
The battery constant temperature test chamber is mainly used for temperature testing of button type batteries and 3C soft pack batteries. Maximizing the utilization of equipment space、 The BTS upper computer has the characteristics of integrated operation control. Mainly targeting research institutions, universities, and experimental centers of battery production enterprises.
Product features:
box
The following materials are used from the outside to the inside of the box:
1. Outer wall: made of cold-rolled galvanized steel plate, with a spray painted anti rust treatment on the outer surface;
2. Insulation layer: The inner insulation layer is made of thick high-density ultra-fine glass wool, which can meet the requirements of high temperature use;
3. Inner wall: made of stainless steel plate; The inner wall seam is continuously welded into a closed working chamber using argon arc welding,
Long term use without leakage;
gate
1. One set of single leaf left opening doors is installed on the front of the equipment;
2. The gate adopts a hinged rotating opening, with an opening angle greater than 150 degrees;
3. The door seal adopts high and low temperature resistant soft silicone rubber sealing strips for compression sealing;
4. The main door lock adopts a door suction lock, which only needs to be gently pressed when closing the door, without the need for strong collision to close the door;
Observation window
1. One set of observation windows, installed at the geometric center of the gate;
2. Observation window specification: Visible insulated glass observation window with good insulation effect.
3. Moisture proof lighting fixtures are installed inside the observation window to provide illumination for the workspace;
Caster wheels
1. To facilitate the movement of the box, four sets of casters are installed below the base of the box:
model | SPL-80HT | SPL-150HT | SPL-250HT | SPL-350HT |
supply voltage | 200V 50HZ | |||
Temperature control range (℃) | 0-65 | |||
Temperature resolution (℃) | 0.1 | |||
Temperature fluctuation (℃) | ±0.3 | |||
refrigerant | 134a | |||
Heating power (kw) | 0.3 | 0.5 | 0.8 | 1.4 |
Studio size (mm) | 500×350×500 | 500×400×750 | 500×500×1000 | 600×550×1000 |
Product dimensions (mm) | 640×610×970 | 640×660×1200 | 640×755×1470 | 740×805×1470 |
Product outer packaging size (mm) | 770×710×1100 | 770×760×1320 | 770×860×1590 | 870×910×1590 |
Partition/load (kg) | 两块/15 | Three pieces/15 | ||
Net weight/gross weight (kg) | 68×83 | 80×110 | 100×137 | 125×165 |
be careful:
1. Environmental temperature:+5 ℃~+35 ℃, relative humidity: ≤ 90% RH;
2. The installation environment of the equipment should not have high concentrations of dust, corrosive gases, and flammable and explosive atmospheres;
3. Avoid direct sunlight or rain;
4. The equipment installation area should have good ventilation and heat exchange conditions to avoid room temperature rise caused by equipment heat dissipation.
