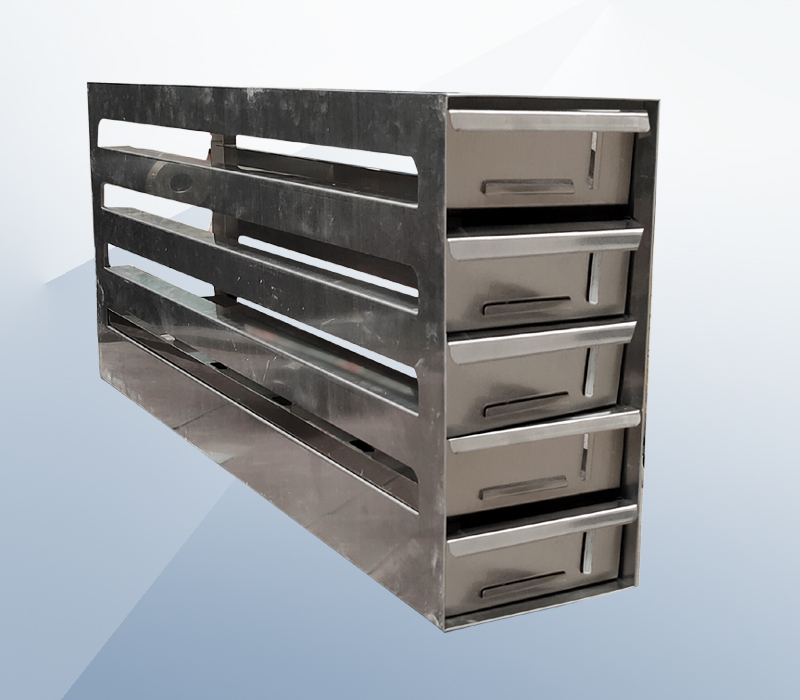

Five layer four column freezer rack

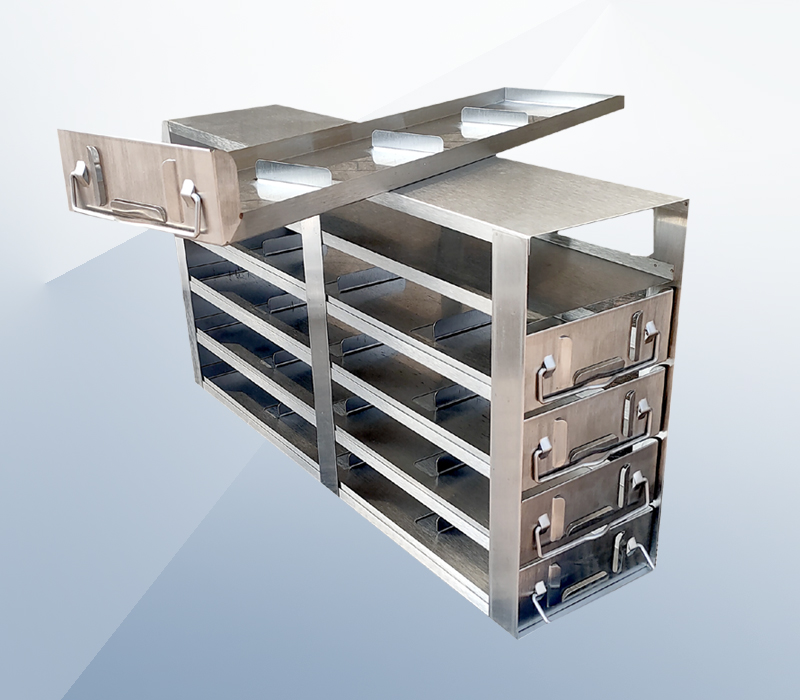

Five layer and five column freezer rack

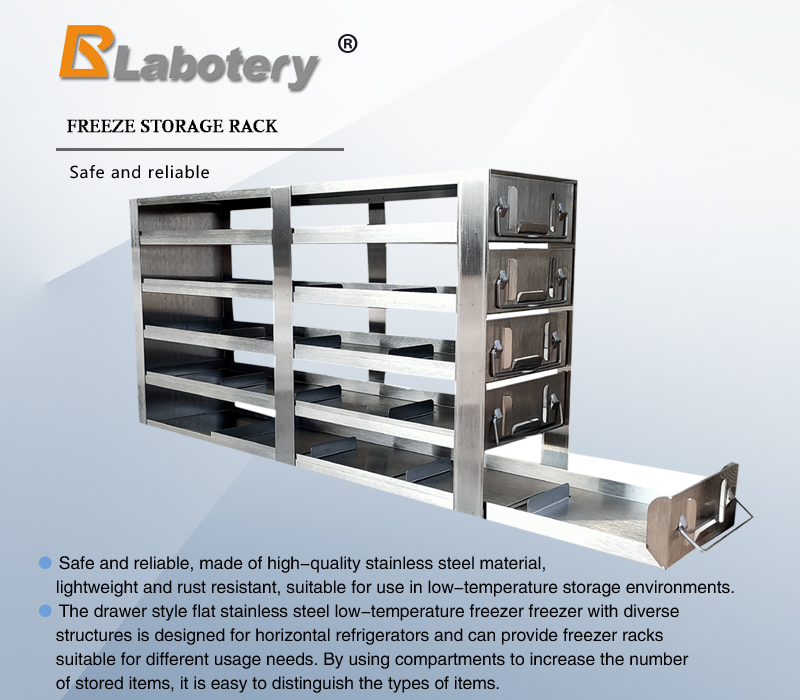

(1) Safe and reliable, made of high-quality stainless steel material, lightweight and rust resistant, suitable for use in low-temperature storage environments.
(2) The drawer style flat stainless steel low-temperature freezer freezer with diverse structures is designed for horizontal refrigerators and can provide freezer racks suitable for different usage needs. By using compartments to increase the number of stored items, it is easy to distinguish the types of items.
(3) Size optimization can optimize the design for different models of low-temperature equipment such as refrigerators and liquid nitrogen tanks from different manufacturers, as well as the capacity requirements for storing samples. Suitable sample freezing racks can be provided to ensure maximum space utilization of low-temperature equipment.
(4) Reliable quality workmanship drawer style flat stainless steel low-temperature freezer freezer freezer rack is made of large stamping equipment, with humanized design, exquisite appearance, and no harm to hands. Reliable quality and easy operation.
(5) The main frame of the freezer rack is formed by stamping a steel plate, splicing and welding it together. There is a circular hole at the bottom of each drawer, and in case the freezer box is frozen, you only need to gently top it below to take it out; Each box is separated by partitions to reduce shaking and displacement of the sample box.
Application areas: permanent preservation of samples in hospitals, biology, food, pharmaceuticals, genetic
Application areas: permanent preservation of samples in hospitals, biology, food, pharmaceuticals, genetic engineering, quarantine and immunization units.
| Name | Describe |
| Five layer four column freezer rack | The freezer rack is divided into 5 layers and 4 columns, with 4 boxes placed horizontally in each drawer. The entire rack can hold 20 boxes Shelf size (L*W*H): 553×290×140mm Compatible box size (L*W*H): 134×134×55mm |
| Five layer and five column freezer rack | The freezer rack is divided into 5 layers and 5 columns, with 5 boxes placed horizontally in each drawer. The entire rack can hold 25 boxes |
The five layer four column freezer rack is suitable for vertical refrigerators, and the following refrigerator models can be selected:
| Name | Suitable for ultra-low temperature refrigerator models |
| Thermo | TSD Series(TSD40320、TSD40400) |
| TSE Series(TSE320、TSE400) | |
| Forma900 Series(904、905、906、910、956、957、988、989、990、994) | |
| Forma700 Series(705、706) | |
| Sanyo | MDF-U5386S、MDF-U53V/ MDF-U54V/ MDF-U50V/MDF-U500V、MDF-682、 MDF-U74V/ U73V/ U72V/ U700VXL |
| Kaltis | GV050P/MAV050P/MDV050P/M、MDF-U5386S GV073P / MAV073P/ MDV073P / M |
| MeiLing | DW-HL218、DW-HL290、DW-HL340、DW-HL388、DW-HL538、DW-HL768 |
| Haier | DW-86L388A/388(J)、DW-86L486、DW-86L490/DW-86L490J、DW-86L628/626 DW-86L728、 |
Freeze storage rack with five layers and five columns
Suitable for vertical refrigerators, the following refrigerator models can be selected:
| brand | Suitable for ultra-low temperature refrigerator models |
Thermo | TSU Series(TSU300、TSU400、TSU400、TSU500、TSU600、TSU300) |
| TSE Series(TSE600) | |
| Forma8800 Series(88300、88400、88500、88600、88700) | |
| Forma900 Series(907、908) | |
| TSX Series(new)(TSX40086V、TSX50086V、TSX60086V、TSX70086V) | |
| FDE Series(new)(FDE30086FV、FDE40086FV、FDE50O86FV、FDE60086FV) | |
| Sanyo | MDF-U5386S、MDF-U53V/ MDF-U54V/ MDF-U50V/MDF-U500V、MDF-682、 MDF-U74V/ U73V/ U72V/ U700VXL |
| Froilabo | BM(S)340、BM(S)515、BM(S)690、BM(S)1000 |
| MeiLing | DW-HL398、DW-HL678、DW-HL778、DW-HL858、DW-HL1008( new ) |
| Haier | DW-86L578J、DW-86L728J、DW-86L828、DW-86L828J、DW-829BPT、 DW-86L959BPT、DW-86L579BPT、DW-86L729BPT |
| Zkduling | MDF-86V588 |
