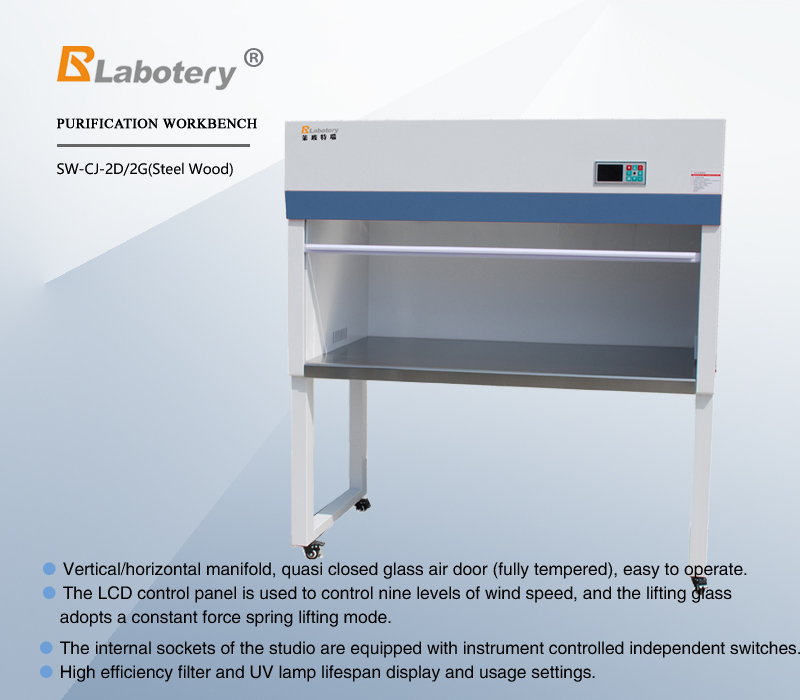

SW-CJ-2D/2G Purification workbench (All steel)
Product Features：
lVertical/horizontal manifold, quasi closed glass air door (fully tempered), easy to operate.
lThe LCD control panel is used to control nine levels of wind speed, and the lifting glass adopts a constant force spring lifting mode.
lThe internal sockets of the studio are equipped with instrument controlled independent switches.
lThe UV lamp will turn on with a delay of five seconds to protect the safety of the operator.
lUV lamp and fan. Fluorescent lamp interlock function. When the fan and fluorescent lamp are working, the ultraviolet lamp cannot be turned on to protect the operator.
lHigh efficiency filter and UV lamp lifespan display and usage settings.
lIn 2022, it was monitored and sampled by the Hebei Provincial Technical Supervision Bureau, and the wind speed and cleanliness were both qualified.
lThis product contains five patented technologies.
Technical Parameter：
Type | SW-CJ-2D | SW-CJ-2G |
Net settlement level | A level 100 @acuity 0.5 mu M (the federal 209 e) | |
Colony forming unit | ≤0.5个/Cultivate AGAR | |
Average wind speed | 0.25-0.45m/s(speed(double speed)) | |
Noise | ≤62dB(A) | |
Vibration half peak value | ≤0.5μM(x，y, z direction) | |
Illuminance | ≥300Lx | |
Working Size(mm) | 1150*480*560 | 1150*410*600 |
External dimensions(mm) | 1270*525*1570 | 1270*525*1570 |
Weight | 150Kg | |
Power supply | AC single-phase 220V/50Hz | |
Maximum power | 300W | |
For the crowd | Double/Single-sided | Double/Single-sided |
Specification and quantity of high-efficiency filters | 1148×370×40mm | 1148×460×40mm |
Specification and quantity of fluorescent and ultraviolet lamps | 30W×①/30W×① | |
